DVT300 Vertical Turning Lathe With Double Spindles And Double Turrets is based on many years of experience in vertical lathe production. Our factory has absorbed the advanced technology of similar machine tools at home and abroad and adopted an advanced upright and inverted double spindle and double turret design to simplify traditional workpieces. The front and back processing procedures greatly reduce manpower requirements and make workpiece processing faster and more accurate.
The spindle of the upright and inverted spindle structure of the machine tool can replace the function of the mechanical arm and directly clamp materials, thereby realizing the automatic loading function. The docking of the dual spindles can easily realize the workpiece turning function and maintain good clamping accuracy. This model has advanced structural design, a high degree of automation, good processing accuracy, and high accuracy retention. It can turn various threads, arcs, cones, and internal and external curved surfaces of the rotary body, and can meet the high-speed cutting speed of ferrous and non-ferrous metal materials. need. It is mainly used to process large and heavy workpieces with large radial dimensions relatively small axial dimensions and complex shapes. Such as the threads, arcs of various discs, wheels, sleeves, and shaft workpieces, and the internal and external curved surfaces, end faces, grooves, etc. of the rotary body. Additional devices can also be installed for milling, drilling, and other processing, which are suitable for processing parts in motors, valves, automobiles, motorcycles, bearings, water pumps, and other industries.
Maximum Machining Diameter: 200mm |
|
Maximum Machining Height: 400mm |
|
Chuck Size: 8" inch |
DETAIL PARAMETERS
VIDEO DISPLAY
Feature:
The spindle of DVT300's upright and inverted spindle structure can replace the mechanical arm function to directly clamp the material, achieving an automatic feeding function. The docking of the two spindles can easily achieve the workpiece flipping function and maintain good clamping accuracy.
It can turn various threads, arcs, cones, and inner and outer surfaces of rotating bodies, meeting the speed requirements of high-speed cutting of ferrous and non-ferrous materials.
If equipped with the hydraulic servo turret, DVT300 can work for large and heavy workpieces with large radial dimensions but relatively small axial dimensions and complex shapes, like the threading, arcs, inner and outer surfaces turning, end faces turning, grooving of various discs, wheels, sleeves, and shaft workpieces.
If equipped with the 12 Post-driven tool turrets, DVT300 can work for milling and drilling of motors, valves, automobiles, motorcycles, bearings, water pumps, etc.
Standard |
Optional |
1. SIEMENS 828D Basic Control System |
1. FANUC 0i-TF Plus Control System |
2. A2-8 |
2. GSK 988TA Absolute Control System |
3. Servo Spindle |
3. Hydraulic Servo 12 Tool Post Turret |
4. Hydraulic None Through Chuck 8 inch |
4. Oil Skimmer |
5. 12 Post Driven Tool Turret (BMT65) |
5. Chip Conveyor |
6. No Tailstock |
|
7. Roller Linear Guideway |
Specification
Configuration | DVT300 | ||
Machining Capacity | Maximum Swing Over Bed | φ/mm | 450 |
Max Machining Height | mm | 400 | |
Max Machining Diameter | φ/mm | 300 | |

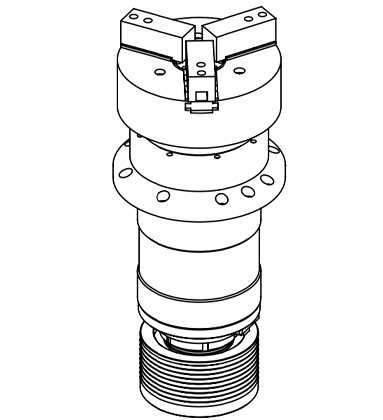

Servo Spindle | Spindle Type | GB59001 | A2-6 |
Spindle Speed Range | r/min | 50-4000 | |
Spindle Shift Mode | Servo | ||
Main Motor Power | kW | 17 | |
Chuck Type | Hydraulic None Through Chuck | ||
Chuck Size | inch | 8" | |
Feed Rate | Rapid Traverse Speed On X-axis | m/min | 25 |
Rapid Traverse Speed On Z-axis | m/min | 25 | |
Servo Motor Torque On X-axis | N·m | 15 | |
Servo Motor Torque On Z-axis | N·m | 10 | |
X1-axis Travel | mm | 1200 | |
X2-axis Travel | mm | 750 | |
Z1/Z2-axis Travel | mm | 450/450 | |
Guideway Type | Roller Linear Guideway | ||
Turret | Turret Type | 12 Post Driven Tool Turret(BMT65) | |
Turning Tools/Boring Bar Size | mm | 25×25/φ40/ER32 | |
Power Source | Total Rated Power | KVA | 36 |
Total Rated Current | A | 73 | |
Dimension | Machine Weight | kg | 10000 |
Machine Dimension | L×W×H(mm) | 2900×2500×2600 | |
Optional | Turret Type | Hydraulic Servo 12 Tool Post Turret | |
Turning Tools/Boring Bar Size | mm | 25×25/φ40 |
Please note that this parameter and appearance are subject to change without notice, thanks.
