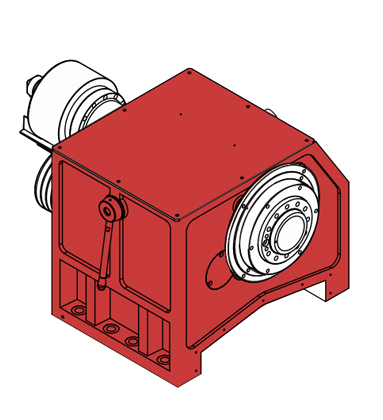

CK1000 Horizontal CNC Flat Bed Lathe For Long Shaft The flat bed structure adopts a high-rigidity, high-load rectangular guide rail design. The design is optimized for the dynamic performance of the rectangular guide rail during movement. It is resistant to warping, earthquake resistance, and machining operation during heavy cutting. smooth. The main spindle box adopts corresponding three-speed transmission and high torque. The low speed ratio reaches 1:23. The main spindle box bearing adopts double row cylindrical roller bearings and bidirectional thrust angular contact bearings, which have high rigidity and long-term stability of heavy cutting accuracy. The machine tool adopts an automatic centralized lubrication system to provide regular and quantitative oil supply. The oil distributor adjusts the oil supply pressure according to the pressure requirements of different lubricating parts to ensure that any lubricating part (such as guide rails, inserts, screws, nuts and other friction pairs) can get Adequate lubrication and set the lubrication system alarm function.
Maximum Machining Diameter: 850mm |
|
Maximum Machining Length: 1500mm |
|
Chuck Size: 630φ/mm |
DETAIL PARAMETERS
VIDEO DISPLAY
Feature:
Flat Bed Lathe, Gear Shift, is usually working with the Indexing Chuck, suitable for the Valve Workpiece Processing, standard with Electric 4 Post Turret and Manual Tailstock.
Standard |
Optional |
1. SIEMENS 808D Advanced Control System |
1. FANUC 0i-TF Plus Control System |
2. A2-15 |
2. GSK 988TA Absolute Control System |
3. Servo Spindle |
3. Hydraulic Through/None Through Chuck |
4. Manual Chuck 25inch |
4. Indexing Chuck(customized according to the workpiece) |
5. Electric 4 Post Turret |
5. Auto Bar Feeder |
6. Rectangular Guideway |
6. Oil Skimmer |
7. Manual Tailstock |
Specification

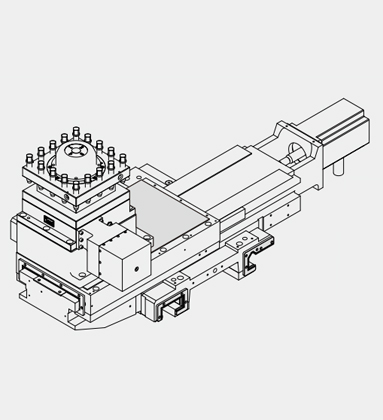

Configuration | CK1000 | ||
Machining Capacity | Maximum Swing Over Bed | φ/mm | 1000 |
Maximum Swing Over Slide | φ/mm | 630 | |
Maximum Machining Lenght | mm | 1500 | |
Maximum Machining Diameter | φ/mm | 850 | |
Spindle | Spindle Head Type | GB59001 | A2-15 |
Spindle Speed Range | r/min | GearA:50-300;B:300-700;C:700-1000 | |
Spindle Rated Torque | N·m | 5000 | |
Main Motor Power | kW | 15 | |
Spindle Taper Hole | φ/mm | 121 | |
Chuck Type | Manual Chuck | ||
Chuck Size | inch | 25 | |
Feed Rate | Rapid Traverse Speed On X-axis | m/min | 10 |
Rapid Traverse Speed On Z-axis | m/min | 12 | |
Servo Motor Torque On X-axis | N·m | 18 | |
Servo Motor Torque On Z-axis | N·m | 22 | |
X-axis Travel | mm | 500 | |
Z-axis Travel | mm | 1600 | |
Guideway Type | Rectangular Guideway | ||
Guideway Width | mm | 600 | |
Turret | Turret Type | Single Electric 4 Post Turret | |
Tool Size | mm | 40×40 | |
Turret Turning Time | S | 1.5/902.4/1803.4/270 | |
Repeated Positioning Accuracy of Turret Transposition | mm | 0.008 | |
Tailstock | Internal Taper of Tailstock Sleeve | MT6 | |
Tailstock Sleeve Diameter | φ/mm | 120 | |
Tailstock Sleeve Travel | mm | 200 | |
Power Source | Total Rated Power | KVA | 26 |
Total Rated Current | A | 54 | |
Dimension | Machine Weight | kg | 9500 |
Machine Dimension | L×W×H(mm) | 4300×2300×1950 |
Please note that this parameter and appearance are subject to change without notice, thanks.
Tool Interferogram
